Product introduction

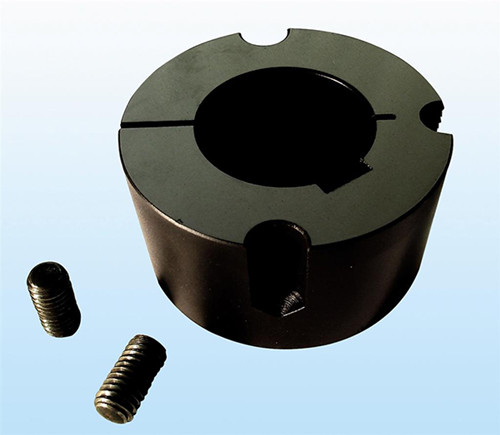

Taper Lock clamping bushes

In addition to the cylindrical clamping elements listed here, we also offer an extensiveline of conical TL clamping elements.

Installation

•Clean and degrease all exposed surfaces. Fit pulley and bush, align holes and screw in screws loosely.

•Push pulley with bush onto the shaft, align and tighten screws evenly to the
correct torque according to the table.

•The empty bores should be filled with grease to prevent penetration by foreign objects.

•Disassembly

Remove screws, insert one as a push-off screw into the hole with a half thread in the bush and tighten. This loosens the Taper Lock bush. Remove the loosened pulley unit – without impact to prevent damage to the machine – by hand

If high torques have to be transmitted and no feather key is used, the Taper Lock clamping bush can be driven further into the conical bore by lightly tapping with a hammer, using a suitable sleeve or wooden block. Afterwards, the screws can be tightened a bit more. This procedure can be repeated.

Bush no.	Bush bore mm	Keyway mm Wide Deep	Bush length mm	Approx weight kg	Largest diameter mm
1008	10	3 1.4	22.3	0.15 to 0.08	35
	11 12	4 1.8
	14 16	5 2.3
	18 19 20 22	6 2.8
	24 25	8 3.3
1108	10	3 1.4	22.3	0.18 to 0.10	38
	11 12	4 1.8
	14 16	5 2.3
	18 19 20 22	6 2.8
	24 25 28	8 3.3
1210	11 12	4 1.8	25.4	0.7 to 0.30	47.5
	14 16	5 2.3
	18 19 20 22	6 2.8
	24 25 28 30	8 3.3
	32	10 3.3
1610	14 15 16	5 2.3	25.4	0.42 to 0.50	57
	18 19 20 22	6 2.8
	24 25 28 30	8 3.3
	32 35 38	10 3.3
	40 42	12 3.3
1615	14 16	5 2.3	38.1	0.60 to 0.25	57
	18 19 20 22	6 2.8
	24 25 28 30	8 3.3
	32 35 38	10 3.3
	40 42	12 3.3
2012	14 16	5 2.3	31.8	0.80 to 0.38	70
	18 19 20 22	5 2.8
	24 25 28 30	8 3.3
	32 35 38	10 3.3
	40 42	12 3.3
	45 48 50	14 3.8
2517	16	5 2.3	44.5	1.7 to 0.80	85.5
	18 19 20 22	6 2.8
	24 25 28 30	8 3.3
	32 35 38	10 3.3
	40 42	12 3.3
	45 48 50	14 3.8
	55	16 4.3
	60	18 4.4
3020	25 28 30	8 3.3	50.8	2.8 to 1.5	108
	32 35 38	10 3.3
	40 42	12 3.3
	45 48 50	14 3.8
	55	16 4.3
	60 65	18 4.3
	70 75	20 4.9
3030	35 38	10 3.3	76.2	4.0 to 2.0	108
	40 42	12 3.3
	45 48 50	14 3.8
	55	16 4.3
	60 65	18 4.4
	70 75	20 4.9
3525	35 38	10 3.3	64	5.5 to 1.8	127
	40 42	12 3.3
	45 48 50	14 3.8
	55	16 4.3
	60 65	18 4.4
	70 75	20 4.9
	80 85	22 5.4
	90 95	25 5.4
	100	28 6.4
3535	35 38	10 3.3	88.9	6.6 to 3.2	127
	40 42	12 3.3
	45 48 50	14 3.8
	55	16 4.3
	60 65	18 4.4
	70 75	20 4.9
	80 85	22 5.4
	90	25 5.4
4030	40 42	12 3.3	76	7.4 to 4.2	146
	45 48 50	14 3.8
	55	16 4.3
	60 65	18 4.4
	70 75	20 4.9
	80 85	22 5.4
	90 95	25 5.4
	100 105 110	28 6.4
	115	32 7.4
4040	40 42	12 3.3	101.6	10.1 to 5.2	146
	45 48 50	14 3.8
	55	16 4.3
	60 65	18 4.4
	70 75	20 4.9
	80 85	22 5.4
	90 95	25 5.4
	100	28 6.4
4535	55	16 4.3	89	10.7 to 4.2	162
	60 65	18 4.4
	70 75	20 4.9
	80 85	22 5.4
	90 95	25 5.4
	100 105 110	28 6.4
	115 120 125	32 7.4
4545	55	16 4.3	114.3	13.2 to 7.4	162
	60 65	18 4.4
	70 75	20 4.9
	80 85	22 5.4
	90 95	25 5.4
	100 105 110	28 6.4
5040	70 75	3 1.4	102	12.2 to 6.2	178
	80 85	4 1.8
	90 95	5 2.3
	100 105 110	6 2.8
	115 120 125	8 3.3
5050	70 75	3 1.4	127	15.2 to 9.2	178
	80 85	4 1.8
	90 95	5 2.3
	100 105 110	6 2.8
	115 120 125	8 3.3
